Pro-Clerk® can Register Buyers by Scanning Their Driver's License
 Pro-Clerk® now also supports scanning the drivers license from any state using the
PDF417
stacked linear barcode symbol format that uses the
AAMVA Personal Identification - AAMVA International Specification - DL/ID Card Design.
|
 |
-

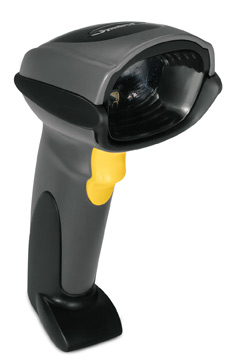

Description: DS 6708 Scanner Kit (DS6708DL Scanner ONLY - Multi-Interface, DL Parsing) - Color: Twilight Black
-
Manufacturer: Motorola
-
Product Line: Motorola DS 6708 Scanner
-
Part Number: DS6708-DL20007ZZR
-
AKA: SYM-DS6708DL20007ZZR
|
|
Motorola DS 6708 Scanner General Description:
|
The DS6708-DL combines all the features of Motorola's standard DS6708 imager, such as omni-directional 1D/2D bar code scanning,
with embedded and server-based parsing agents that enable users to read the PDF-417 bar code on a US driver's licence and use that
information for a multitude of applications. Because the parsing is done in the scanner and the output is controlled by the user,
the scanner can easily be used in all environments with very little start-up effort.
You will also need the following cable.
CBA-U01S07ZAR Cable (7 Feet, Universal Style USB, Straight)
Order from www.totalbarcode.com
Or Call: Sergio Garcia 1-877-664-4157 ext. 179
In addition you will need to scan the following prepared document of bar codes to program:
DS6708-DL Scanner Setup Sheet |
Pro-Clerk® supports scanning the drivers license from any state that uses the
AAMVA Personal Identification - AAMVA International Specification - DL/ID Card Design or
CaliforniCalifornia DMV standard using an
optional 3 track magnetic stripe
with the following supported magnetic stripe reader.
|
|
Uniform MSR213 Magnetic Card Reader
|
The MSR213U Series USB HID Keyboard Interface Magnetic Card Reader is ideal for retail systems, time keeping systems, security systems, and
card reader related systems. The MSR213 series are designed to offer the user a card reader solution that will complement many applications. Triple
track MSR213 reader is uniquely designed to read both credit cards and Driver Licenses (AAMVA and California standard).
FEATURES
- LED and Buzzer indicators indicate the status of the reader.
- Triple track versions allow to reading ISO, AAMVA and DMV cards.
- User-friendly setting application.
- Compact size that can be mounted on keyboard or any flat surface.
|  |
|
Where to Buy:
http://www.posguys.com/magnetic-card-reader_4/Uniform-210_551/ |
|
Recommended Models
|
| MSR213U-33AUKNR |
MSR213 Magnetic Card Reader, Color: Black with Tracks 1, 2, & 3, USB Interface
|
|
* These product specifications may not apply to every model available. Please see manufacturer product brochure for complete product specifications or call POSGuys at 800.903.6571
|
In addition after purchasing you will need to program this scanner by installing and running the MSR213U
Configuration Setup AP software on one computer. Either use the cd that comes with your scanner or here
is a copy you can download.
213CS631.exe
Use this supplied script file
MSR213USetup.bin for programming scanner.
Follow these programming instructions.
Programming Documentation for MSR213-33AUKNR
If any of these files open only in your browser window you will need to download by right mouse clicking on the file and choose to save to your computer.
You can then open from your computer.
|
|
States that have Compatible Driver's License
|
| United States | Magnetic Stripe | 2D Bar Code | Notes |
| Alabama | No | Yes | |
| Alaska | No | Yes | |
| Arizona | Yes | Yes | |
| Arkansas | Yes | Yes | |
| California | Yes | No | |
| Colorado | Yes | Yes | |
| Connecticut | No | Yes | |
| Delaware | No | Yes | |
| District of Columbia | No | Yes | |
| Florida | Yes | Yes | |
| Georgia | No | No | *Licenses are encrypted and will not work. |
| Hawaii | No | Yes | |
| Idaho | No | Yes | |
| Illinois | No | Yes* | *Does not include full address information. |
| Indiana | No | Yes | |
| Iowa | Yes | Yes | *02/24/2011 - New licenses do not have mag-stripe. |
| Kansas | Yes | Yes | *Older licenses have the mag-stripe, but there is no information encoded on the mag-stripe. |
| Kentucky | No | Yes* | *Newer licenses require special programming. |
| Louisiana | Yes | Yes | |
| Maine | No | Yes | |
| Maryland | Yes | Yes | |
| Massachusetts | Yes | Yes | |
| Michigan | No* | Yes** |
*The mag-stripe exists but can not be used as they only encode DL# and birth date.
**New enhanced MI licenses will parse correctly. The enhanced license is a 2d barcode that is available for an extra $45 per person and is used for entry into Canada without a passport.
|
| Minnesota | Yes | No* | *2d barcode is present but incomplete and can not be used. |
| Mississippi | No | Yes | |
| Missouri | No | Yes | |
| Montana | Yes* | Yes* | *Starting in July 2008 licenses only have 2d barcode. |
| Nebraska | No | Yes | |
| Nevada | No | Yes | |
| New Hampshire | Yes | Yes | |
| New Jersey | No | Yes | |
| New Mexico | Yes | No | |
| New York | No* | Yes | *Present but incomplete implementation. |
| North Carolina | No | No* | *April 2007 and later issued DL's work. Older licenses are encrypted and will not work. |
| North Dakota | No | Yes | |
| Ohio | Yes | No | |
| Oklahoma | No | Yes | |
| Oregon | No | Yes | |
| Pennsylvania | Yes | Yes | |
| Rhode Island | No | Yes | |
| South Carolina | Yes | Yes | |
| South Dakota | No | Yes | |
| Tennessee | No | Yes | |
| Texas | Yes | No | |
| Utah | No | Yes | |
| Vermont | Yes | Yes | |
| Virgin Islands | No | No | |
| Virginia | No | Yes | |
| Washington | No | Yes | |
| West Virginia | No | Yes | |
| Wisconsin | Yes | Yes | *April 2008 - new licenses only have 2d barcode. |
| Wyoming | No | No | |
| British Columbia | Yes | Yes | *June 2010 - Older licenses (<= 2005) only have mag-stripe. |
| New Brunswick | Yes | No | |
| Newfoundland | Yes | No | |
| Nova Scotia | Yes | No | |
| Ontario | No* | Yes* |
*December 2011 - New licenses no longer have a mag-stripe - they only have 2d barcode. Older licenses have both a mag-stripe and 2d barcode.
|
| Quebec | No | No | |
Pricing
Complete Software® Package Version 3.0 Multi User $895.00*
*price includes on-line phone support*
